woltomierz 6 wejść na arduino mega

Masz pomysł na funkcjonalność lub koncepcję na rozwój projektu. Opisz wszystko tutaj.
piomar2
Posty: 267
Rejestracja: pt kwie 26, 2019 5:32 pm
Lokalizacja: Bukowice

sob wrz 21, 2019 11:46 am

Witam!

Jakiś czas temu kolega jemar pytał o pomiar 6 napięć (miał do dyspozycji arduino mega). Rozwiązanie nie jest najlepsze (z motyką na słońce) ale działa i można je rozwinąć o większą ilość wejść. Max do 15 (mega ma 15 wej ADC). Zderzyłem się z odświeżaniem przez suplę (dużo było o tym na forum). Zrealizowałem to w nietypowy sposób resetując megę co 8 sek. Po tym zabiegu mega rozłącza się z cloudem i ponownie łączy i odświeża wyniki co te 8 sek.
Może ktoś ma lepszy pomysł???

Kod: Zaznacz cały

//Arduino mega + W5100
//Pomiar 6x napięć na wejściach A0, A1, A2, A3, A4, A5
//Na każdym wejściu dzielnik 90k+10k(potencjometr)/10k (max 30 V)

#include <avr/wdt.h>
#include <SPI.h>
#include <Ethernet.h>
#include <SuplaDevice.h>
#include <OneWire.h>
#include <DallasTemperature.h> // Biblioteki

float vout = 0.0;
float vin = 0.0;
float R1 = 100000.0; // R1 - 100K
float R2 = 10000.0; // R2 - 10K
int value = 0;

#define ONE_WIRE_1 A0
#define ONE_WIRE_2 A1
#define ONE_WIRE_3 A2
#define ONE_WIRE_4 A3
#define ONE_WIRE_5 A4
#define ONE_WIRE_6 A5

// DS18B20 Sensor read implementation
double get_temperature(int channelNumber, double last_val) {

    double t = -275;
          switch(channelNumber)
         {
           case 0:
        value = analogRead(A0);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("1   ");
        Serial.println(t);
                    break;
           case 1:
        value = analogRead(A1);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("2   ");
        Serial.println(t);
                    break;
          case 2:
        value = analogRead(A2);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("3   ");
        Serial.println(t);
                    break;
           case 3:
        value = analogRead(A3);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("4   ");
        Serial.println(t);
                    break;
          case 4:
        value = analogRead(A4);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("5   ");
        Serial.println(t);
                    break;
          case 5:
        value = analogRead(A5);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("6   ");
        Serial.println(t);
                    break;
    }
   return t;
}

void setup() {

 wdt_enable(WDTO_8S);

 Serial.begin(9600);

  SuplaDevice.setTemperatureCallback(&get_temperature);

 char GUID[SUPLA_GUID_SIZE] = {xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx};

  // GUID pod adresem https://www.supla.org/arduino/get-guid


  // Adres MAC
  //Jeżeli masz już inne arduino mega to adresy MAC muszą się różnić
  uint8_t mac[6] = {0x00, 0x11, 0x02, 0x03, 0x04, 0x05};

  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();


  SuplaDevice.begin(GUID,              // Globalny unikalny identyfikator urządzenia
                    mac,               // Adres MAC
                    "xxx",  // Adres serwera SUPLA
                    xxx,                 // Identyfikator lokalizacji
                    "xxx");               // Hasło lokalizacji
}

void loop() {
  SuplaDevice.iterate();
}
Awatar użytkownika
klew
Posty: 659
Rejestracja: czw cze 27, 2019 12:16 pm

sob wrz 21, 2019 12:22 pm

Spróbuj w SuplaDevice.cpp

zamienić linię:

Kod: Zaznacz cały

channel_pin[Params.reg_dev.channel_count].time_left = 0;
na:

Kod: Zaznacz cały

channel_pin[Params.reg_dev.channel_count].time_left = 1000*Params.reg_dev.channel_count;
Do tego w metodzie "onRegisterResult" w znajdź linię:

Kod: Zaznacz cały

status(STATUS_REGISTERED_AND_READY, "Registered and ready.");
I przed nią dodaj:

Kod: Zaznacz cały

last_iterate_time = millis();
To powinno sprawić, że Twoje "termometry" będą odczytywane w odstępach 1 s od siebie i każdy raz na 10 s (a nie wszystkie na raz co 10 s).

I wyrzuć resetowanie ;)
piomar2
Posty: 267
Rejestracja: pt kwie 26, 2019 5:32 pm
Lokalizacja: Bukowice

sob wrz 21, 2019 1:17 pm

klew wielkie dzięki !!!. Oczywiście hula świetnie. Doszukać się TAKICH informacji nie jest łatwo...

Pozdrawiam

Poprawiona wersja :

Kod: Zaznacz cały

//Arduino mega + W5100
//Pomiar 6x napięć na wejściach A0, A1, A2, A3, A4, A5
//Na każdym wejściu dzielnik 90k+10k(potencjometr)/10k (max 30 V)

#include <SPI.h>
#include <Ethernet.h>
#include <SuplaDevice.h>
#include <OneWire.h>
#include <DallasTemperature.h> // Biblioteki

float vout = 0.0;
float vin = 0.0;
float R1 = 100000.0; // R1 - 100K
float R2 = 10000.0; // R2 - 10K
int value = 0;

#define ONE_WIRE_1 A0
#define ONE_WIRE_2 A1
#define ONE_WIRE_3 A2
#define ONE_WIRE_4 A3
#define ONE_WIRE_5 A4
#define ONE_WIRE_6 A5

// DS18B20 Sensor read implementation
double get_temperature(int channelNumber, double last_val) {

    double t = -275;
          switch(channelNumber)
         {
           case 0:
        value = analogRead(A0);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("1   ");
        Serial.println(t);
                    break;
           case 1:
        value = analogRead(A1);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("2   ");
        Serial.println(t);
                    break;
          case 2:
        value = analogRead(A2);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("3   ");
        Serial.println(t);
                    break;
           case 3:
        value = analogRead(A3);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("4   ");
        Serial.println(t);
                    break;
          case 4:
        value = analogRead(A4);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("5   ");
        Serial.println(t);
                    break;
          case 5:
        value = analogRead(A5);
        vout = (value * 5) / 1024.0;
        vin = vout / (R2/(R1+R2));
        if (vin<0.09) {
          vin=0.0;
         }
        t=vin;
        vin=0.0;
        Serial.print("6   ");
        Serial.println(t);
                    break;
    }
   return t;
}

void setup() {


 Serial.begin(9600);

  SuplaDevice.setTemperatureCallback(&get_temperature);

 char GUID[SUPLA_GUID_SIZE] = {0xC1,0xC7,0xCB,0x0C,0x47,0xBE,0x02,0x5C,0xD9,0x7D,0xC9,0xA9,0xE7,0xB0,0x5E,0x58};

  // GUID pod adresem https://www.supla.org/arduino/get-guid


  // Adres MAC
  //Jeżeli masz już inne arduino mega to adresy MAC muszą się różnić
  uint8_t mac[6] = {0x00, 0x11, 0x02, 0x03, 0x04, 0x05};

  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();
  SuplaDevice.addDS18B20Thermometer();


  SuplaDevice.begin(GUID,              // Globalny unikalny identyfikator urządzenia
                    mac,               // Adres MAC
                    "xxx",  // Adres serwera SUPLA
                    xxx,                 // Identyfikator lokalizacji
                    "xxx");               // Hasło lokalizacji
}

void loop() {
  SuplaDevice.iterate();
}
Lechu_
Posty: 162
Rejestracja: wt paź 11, 2016 5:41 pm

pt paź 11, 2019 7:19 am

Szukam podobnej opcji tylko potrzebuje mierzyć 7 napięć do 5V. Najlepiej gdyby taką opcję dało się zrealizować np przez Wemosa i jakiś multiplexer. Niestety nie znam się na kodach arduino i w zasadzie nie musiałoby to być rejestrowane w Supli , byleby dało się wysyłać te dane na jakiś ogólnodostępny serwer i mieć podgląd przez aplikacje albo www. Czy ktoś byłby w stanie pomóc mi w takim temacie?
elmaya
Posty: 711
Rejestracja: śr cze 27, 2018 5:48 pm
Lokalizacja: Sevilla

pt paź 11, 2019 12:06 pm

Lechu_ pisze:
pt paź 11, 2019 7:19 am
Szukam podobnej opcji tylko potrzebuje mierzyć 7 napięć do 5V. Najlepiej gdyby taką opcję dało się zrealizować np przez Wemosa i jakiś multiplexer. Niestety nie znam się na kodach arduino i w zasadzie nie musiałoby to być rejestrowane w Supli , byleby dało się wysyłać te dane na jakiś ogólnodostępny serwer i mieć podgląd przez aplikacje albo www. Czy ktoś byłby w stanie pomóc mi w takim temacie?

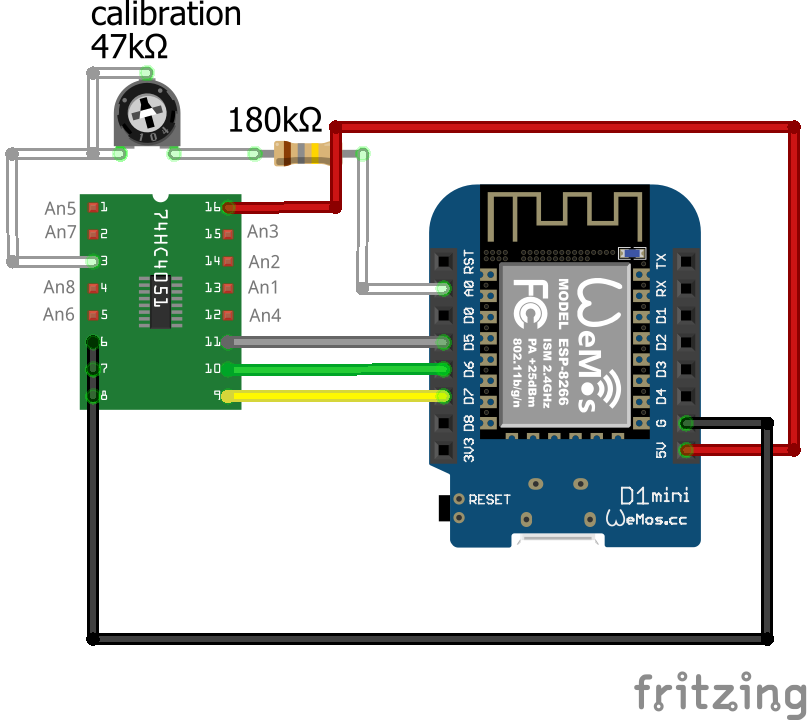

8 analog inputs max 5v

Obrazek

Kod: Zaznacz cały

#include <FS.h>       // ---- esp board manager 2.4.2 --- iwip Variant V2 higher Bandwidth
#include <ESP8266WiFi.h>
#define SUPLADEVICE_CPP
#include <SuplaDevice.h>
